IRFH5206PBF - HEXFET Power MOSFET

Datasheet Summary

Features

  • Features Low RDSon (≤ 7.0mΩ at Vgs=10V) Low Thermal Resistance to PCB (≤ 1.2°C/W) 100% Rg tested Low Profile (≤ 0.9 mm) Lower Conduction Losses Enable better thermal dissipation Increased Reliability results in Increased Power Density Industry-Standard Pinout ⇒ Multi-Vendor Compatibility Easier Manufacturing Compatible with Existing Surface Mount Techniques Environmentally Friendlier RoHS Compliant Containing no Lead, no Bromide and no Halogen MSL1, Industrial Qualification Increased Reliabili.

📥 Download Datasheet

Datasheet preview – IRFH5206PBF

📁 Similar Datasheet

Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text

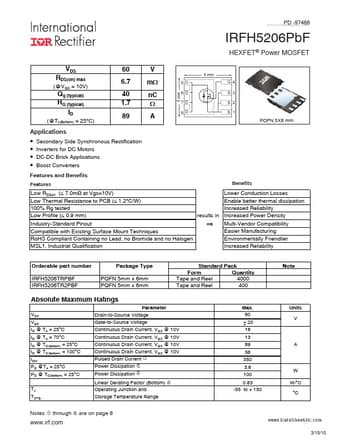

PD -97466 www.DataSheet4U.com IRFH5206PbF HEXFET® Power MOSFET VDS RDS(on) max (@VGS = 10V) 60 6.7 40 1.7 89 V m : Qg (typical) RG (typical) ID nC : A (@Tc(Bottom) = 25°C) PQFN 5X6 mm Applications • • • • Secondary Side Synchronous Rectification Inverters for DC Motors DC-DC Brick Applications Boost Converters Benefits Features and Benefits Features Low RDSon (≤ 7.0mΩ at Vgs=10V) Low Thermal Resistance to PCB (≤ 1.2°C/W) 100% Rg tested Low Profile (≤ 0.
