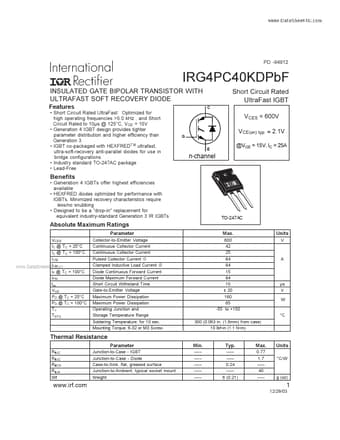

PD -94912
IRG4PC40KDPbF
INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE
Features
Short Circuit Rated UltraFast: Optimized for high operating frequencies >5.0 kHz , and Short Circuit Rated to 10µs @ 125°C, VGE = 15V Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3 IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations Industry standard TO-247AC package Lead-Free
C
Short Circuit Rated UltraFast IGBT
VCES = 600V
G E
VCE(on) typ. = 2.1V
@VGE = 15V, IC = 25A
n-channel
Benefits
Generation 4 IGBTs offer highest efficiencies available HEXFRED diodes optimized for performance with IGBTs.
