IRG7PH46UPbF, IRG7PH46U-EP, INSULATED GATE BIPOLAR TRANSISTOR

PD - 96305 INSULATED GATE BIPOLAR TRANSISTOR .

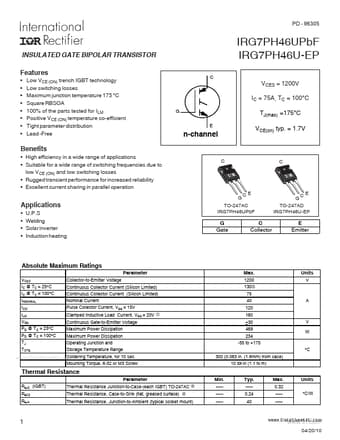

datasheet Preview Page 1 from Datasheet4u.com

IRG7PH46U-EP_InternationalRectifier.pdf

IRG7PH46UPbF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRG7PH46UPbF, IRG7PH46U-EP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRG7PH46UPbF, IRG7PH46U-EP

Manufacturer:

International Rectifier

File Size:

413.79 KB

Description:

INSULATED GATE BIPOLAR TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: IRG7PH46UPbF, IRG7PH46U-EP.
Please refer to the document for exact specifications by model.

Features

* Low VCE (ON) trench IGBT technology Low switching losses Maximum junction temperature 175 °C Square RBSOA 100% of the parts tested for ILM Positive VCE (ON) temperature co-efficient Tight parameter distribution Lead -Fre

Applications

* Suitable for a wide range of switching frequencies due to low VCE (ON) and low switching losses
* Rugged transient performance for increased reliability
* Excellent current sharing in parallel operation C C GC E Applications
* U. P. S
