IRL2505L Datasheet, Mosfet, International Rectifier

IRL2505L Features

  • Mosfet 200 L VDS D.U.T. RG + V - DD 10 V E A S , S ingle P ulse A valanche E nergy (m J) TO P 1000 B O TTO M ID 22 A 3 8A 54 A 800 IAS tp 0.01Ω 600 400 Fig 12a. Unclamped Inductive T

PDF File Details

Part number:

IRL2505L

Manufacturer:

International Rectifier

File Size:

186.57kb

Download:

📄 Datasheet

Description:

Power mosfet. l HEXFET® Power MOSFET D VDSS = 55V RDS(on) = 0.008Ω G ID = 104A† S Fifth Generation HEXFETs from International Rectifier utiliz

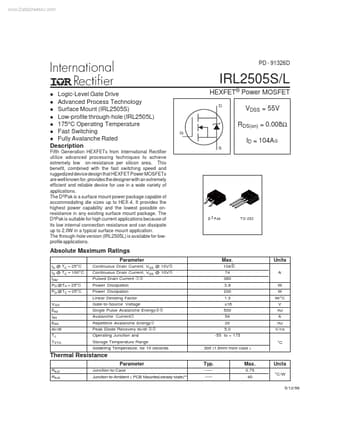

Datasheet Preview: IRL2505L 📥 Download PDF (186.57kb)
Page 2 of IRL2505L Page 3 of IRL2505L

IRL2505L Application

  • Applications The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability an
