IRLR7843, HEXFET Power MOSFET

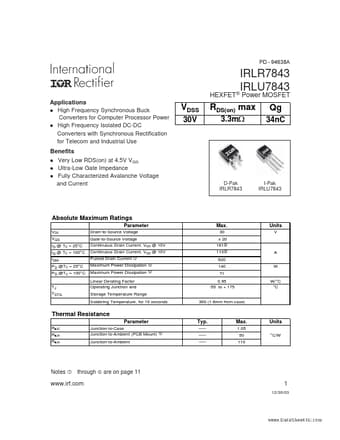

PD - 94638A HEXFET Power MOSFET Applications l High Frequency Synchronous Buck Converters for Computer Processor Power l High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use Benefits l Very Low RDS(on) at 4.5V VGS l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage and Current IRLR7843 IRLU7843 ® Qg 34nC VDSS 30V RDS(on) max 3.3m: D-Pak IRLR7843 I-Pak IRLU7843 Absolute Maximum Ratings Parameter VDS VGS ID @ TC = 25°C ID @ TC

IRLR7843 Features

* oss equation includes the terms Qgs2 and Qoss which are new to Power MOSFET data sheets. Qgs2 is a sub element of traditional gate-source charge that is included in all MOSFET data sheets. The importance of splitting this gate-source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig
