IRLR7843CPBF POWER MOSFET

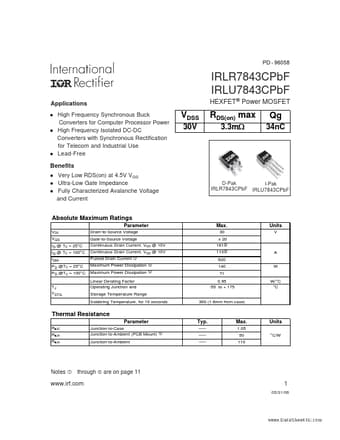

PD - 96058 IRLR7843CPbF IRLU7843CPbF Applications l l HEXFET® Power MOSFET l High Frequency Synchronous Buck Converters for Computer Processor Power High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use Lead-Free VDSS 30V RDS(on) max 3.3m: Qg 34nC Benefits l l l Very Low RDS(on) at 4.5V VGS Ultra-Low Gate Impedance Fully Characterized Avalanche Voltage and Current D-Pak I-Pak IRLR7843CPbF IRLU7843CPbF Absolute Maximum Ratings Parameter .

IRLR7843CPBF Features

* Qgs 2 f⎟ + ⎜ I × × Vin × f ⎟ ig ⎠ ⎝ ⎠ This simplified loss equation includes the terms Qgs2 and Qoss which are new to Power MOSFET data sheets. Qgs2 is a sub element of traditional gate-source charge that is included in all MOSFET data sheets. The importance of splitting this gate-source charge int
