IRS2004SPBF, IRS2004PBF Datasheet - International Rectifier

IRS2004SPBF HALF-BRIDGE DRIVER

www.DataSheet4U.com The IRS2004 is a high voltage, high speed power MOSFET and IGBT driver with dependent high- and lowside referenced output channels. Proprietary HVIC and 8 Lead SOIC 8 Lead PDIP latch immune CMOS technologies enable ruggedized IRS2004S IRS2004 monolithic construction. The logic i.

IRS2004SPBF Features

* Floating channel designed for bootstrap operation

* Fully operational to +200 V

* Tolerant to negative transient voltage, dV/dt immune

* Gate drive supply range from 10 V to 20 V

* Undervoltage lockout

* 3.3 V, 5 V, and 15 V input logic compatible

IRS2004PBF_InternationalRectifier.pdf

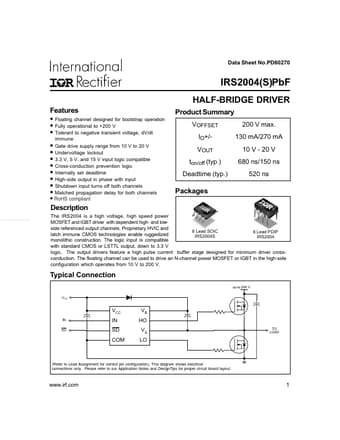

IRS2004SPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS2004SPBF, IRS2004PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRS2004SPBF, IRS2004PBF

Manufacturer:

International Rectifier

File Size:

305.81 KB

Description:

Half-bridge driver.

Note:

This datasheet PDF includes multiple part numbers: IRS2004SPBF, IRS2004PBF.
Please refer to the document for exact specifications by model.
