IRS2153 Datasheet - International Rectifier

IRS2153 Self Oscillating Half Bridge Driver

The IRS2153(1)D is based on the popular IR2153 selfoscillating half-bridge gate driver IC using a more advanced silicon platform, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. HVIC and latch immune CMOS technologi.

IRS2153 Features

* Integrated 600 V half-bridge gate driver

* CT, RT programmable oscillator

* 15.4 V Zener clamp on VCC

* Micropower startup

* Non-latched shutdown on CT pin (1/6th VCC)

* Internal bootstrap FET

* Excellent latch immunity on all inputs and out

IRS2153-InternationalRectifier.pdf

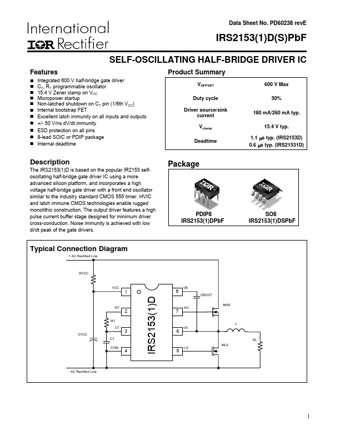

IRS2153 Datasheet Preview — Preview of IRS2153 PDF

Datasheet Details

Part number:

IRS2153

Manufacturer:

International Rectifier

File Size:

357.46 KB

Description:

Self oscillating half bridge driver.
