IRS2153DSPBF - Self Oscillating Half Bridge Driver

Product Overview

International Rectifier

Datasheet Details

Part number	IRS2153DSPBF
Manufacturer	International Rectifier
File Size	331.44 KB
Description	Self Oscillating Half Bridge Driver
Datasheet	IRS2153DSPBF Datasheet
Note	This datasheet PDF includes multiple part numbers: IRS2153DSPBF, IRS2153DPBF. Please refer to the document for exact specifications by model.

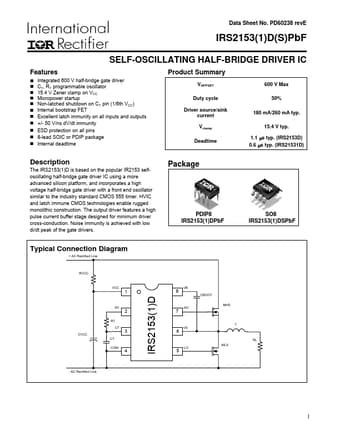

Additional preview pages of the IRS2153DSPBF datasheet.

Product details

Description

The IRS2153(1)D is based on the popular IR2153 selfoscillating half-bridge gate driver IC using a more advanced silicon platform, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer.

Features

Integrated 600 V half-bridge gate driver.
CT, RT programmable oscillator.
15.4 V Zener clamp on VCC.
Micropower startup.
Non-latched shutdown on CT pin (1/6th VCC).
Internal bootstrap FET.
Excellent latch immunity on all inputs and outputs.
+/- 50 V/ns dV/dt immunity.
ESD protection on all pins.
8-lead SOIC or PDIP package.
Internal deadtime Product Summary.
