IRS21531DPbF SELF-OSCILLATING HALF-BRIDGE DRIVER

The IRS2153(1)D is based on the popular IR2153 selfoscillating half-bridge gate driver IC using a more advanced silicon platform, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. HVIC and latch immune CMOS technologi.

IRS21531DPbF Features

* Integrated 600 V half-bridge gate driver

* CT, RT programmable oscillator

* 15.4 V Zener clamp on VCC

* Micropower startup

* Non-latched shutdown on CT pin (1/6th VCC)

* Internal bootstrap FET

* Excellent latch immunity on all inputs and out

IRS21531D-InternationalRectifier.pdf

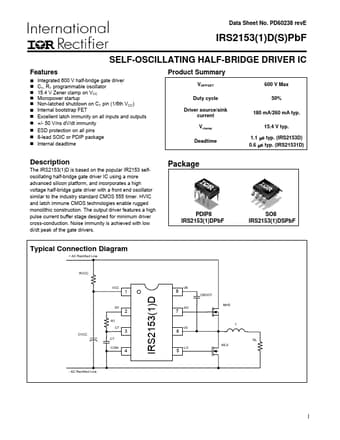

IRS21531DPbF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS21531DPbF, IRS21531D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRS21531DPbF, IRS21531D

Manufacturer:

International Rectifier

File Size:

331.42 KB

Description:

Self-oscillating half-bridge driver.

Note:

This datasheet PDF includes multiple part numbers: IRS21531DPbF, IRS21531D.
Please refer to the document for exact specifications by model.
