IRS21531DSTRPbF - SELF-OSCILLATING HALF-BRIDGE DRIVER

Product Overview

International Rectifier

Datasheet Details

Part number	IRS21531DSTRPbF
Manufacturer	International Rectifier
File Size	331.42 KB
Description	SELF-OSCILLATING HALF-BRIDGE DRIVER
Datasheet	IRS21531DSTRPbF Datasheet
Note	This datasheet PDF includes multiple part numbers: IRS21531DSTRPbF, IRS21531D. Please refer to the document for exact specifications by model.

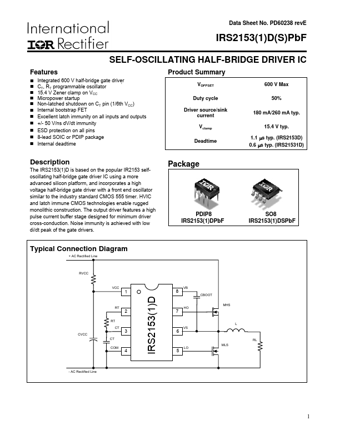

Additional preview pages of the IRS21531DSTRPbF datasheet.

Product details

Description

The IRS2153(1)D is based on the popular IR2153 selfoscillating half-bridge gate driver IC using a more advanced silicon platform, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer.

Features

Integrated 600 V half-bridge gate driver.
CT, RT programmable oscillator.
15.4 V Zener clamp on VCC.
Micropower startup.
Non-latched shutdown on CT pin (1/6th VCC).
Internal bootstrap FET.
Excellent latch immunity on all inputs and outputs.
+/- 50 V/ns dV/dt immunity.
ESD protection on all pins.
8-lead SOIC or PDIP package.
Internal deadtime Product Summary.
