SBB501R2S VOLTAGE REGULATOR

The SBB Series point of load (POL) DC to DC voltage regulators are high reliability hermetically sealed thick film hybrids designed to provide a single regulated DC output from a DC voltage source. The output power rating is 14W to 30W depending on output voltage, with maximum current rating of 14A..

SBB501R2S Features

*  Total Dose > 100 kRads(Si)

*  SEE Hardened rated with LET > 82 MeV.cm2/mg

*  Operates from 4.5V to 5.5V DC supply

*  Fixed output voltage: 1V, 1.2V, 1.5V, 1.8V, 2.5V and 3.3V are standards

*  Output power up to 30W or 14A maximum without de-rating

*  High efficiency to 89%

SBB501R2S, SBB501S Datasheet

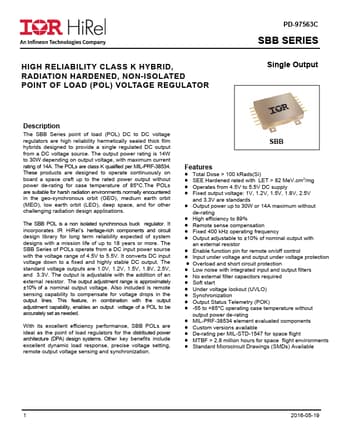

SBB501R2S Datasheet Preview — This datasheet PDF includes multiple part numbers: SBB501R2S, SBB501S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBB501R2S, SBB501S

Manufacturer:

International Rectifier

File Size:

450.86 KB

Description:

Voltage regulator.

This datasheet PDF includes multiple part numbers: SBB501R2S, SBB501S. Please refer to the document for exact specifications by model.
