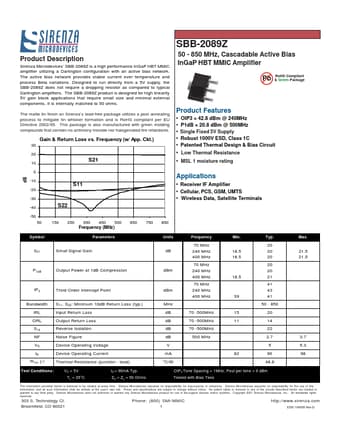

SBB-2089Z Datasheet, Amplifier, Sirenza Microdevices

SBB-2089Z Features

• Amplifier
• OIP3 = 42.8 dBm @ 240MHz
• P1dB = 20.8 dBm @ 500MHz
• Single Fixed 5V Supply
• Robust 1000V ESD, Class 1C
• Patented Thermal Design & Bias Circ

PDF File Details

Part number:

SBB-2089Z

Manufacturer:

Sirenza Microdevices

File Size:

132.84kb

Download:

📄 Datasheet

Description:

Cascadable active bias ingap/gaas hbt mmic amplifier. Sirenza Microdevices’ SBB-2089Z is a high performance InGaP HBT MMIC amplifier utilizing a Darlington configuration with an active bi

SBB-2089Z Application

• Applications that require small size and minimal external components. It is internally matched to 50 ohms. The matte tin finish on Sirenza’s lead-f
