SBB501S, VOLTAGE REGULATOR

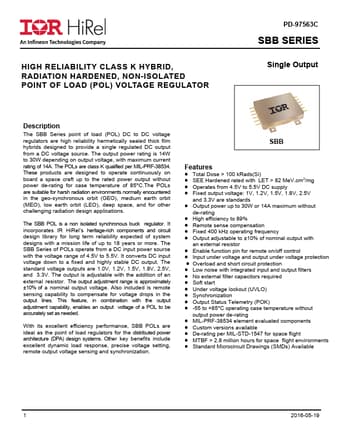

HIGH RELIABILITY CLASS K HYBRID, RADIATION HARDENED, NON-ISOLATED POINT OF LOAD (POL) VOLTAGE REGULATOR PD-97563C SBB SERIES Single Output Descripti.
The SBB Series point of load (POL) DC to DC voltage regulators are high reliability hermetically sealed thick film hybrids designed to provide a singl.

datasheet Preview Page 1 from Datasheet4u.com

SBB501S-InternationalRectifier.pdf

SBB501S Datasheet Preview — Preview of SBB501S PDF

Datasheet Details

Part number:

SBB501S

Manufacturer:

International Rectifier

File Size:

450.86 KB

Description:

VOLTAGE REGULATOR

Features

*  Total Dose > 100 kRads(Si)
*  SEE Hardened rated with LET > 82 MeV. cm2/mg
*  Operates from 4.5V to 5.5V DC supply
*  Fixed output voltage: 1V, 1.2V, 1.5V, 1.8V, 2.5V and 3.3V are standards
*  Output power up to 30W or 14A maximum without de-rating
*  High efficiency to 89%

Applications

* The SBB POL is a non isolated synchronous buck regulator. It incorporates IR HiRel’s heritage-rich components and circuit design library for long term reliability expected of system designs with a mission life of up to 18 years or more. The SBB Series of POLs operate from a DC input power source wi
