SBB-2089 - Cascadable Active Bias InGaP/GaAs HBT MMIC Amplifier

Product Overview

Sirenza Microdevices

Part number	SBB-2089
Manufacturer	Sirenza Microdevices
File Size	132.84 KB
Description	Cascadable Active Bias InGaP/GaAs HBT MMIC Amplifier
Datasheet	SBB-2089 Datasheet
Additional preview pages of the SBB-2089 datasheet.

Sirenza Microdevices’ SBB-2089 is a high performance InGaP HBT MMIC amplifier utilizing a Darlington configuration with an active bias network.

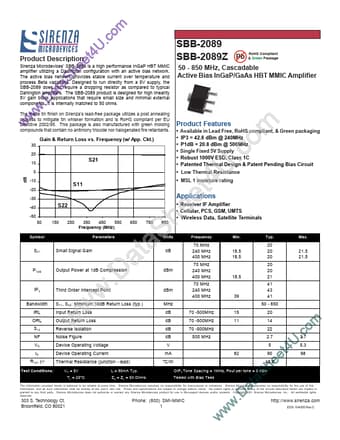

Gain & Return Loss vs. Frequency (w/ App. Ckt. ) S21 Available in Lead Free, RoHS compliant, & Green packaging IP3 = 42.8 dBm @ 240MHz P1dB = 20.8 dBm @ 500MHz Single Fixed 5V Supply Robust 1000V ESD, Class 1C Patented Thermal Design & Patent Pending Bias Circuit Low Thermal Resistance MSL 1 moisture rating -10 -20 -30 -40 -50 50 Symbol S11 S22 150 250 350 450 550 Frequency (MHz) Parameters 650 750 S21 Small.
