SBB501R5S

VOLTAGE REGULATOR

SBB501R5S Features

*  Total Dose > 100 kRads(Si)

*  SEE Hardened rated with LET > 82 MeV.cm2/mg

*  Operates from 4.5V to 5.5V DC supply

*  Fixed output voltage: 1V, 1.2V, 1.5V, 1.8V, 2.5V and 3.3V are standards

*  Output power up to 30W or 14A maximum without de-rating

*  High efficiency to 89%

SBB501R5S General Description

The SBB Series point of load (POL) DC to DC voltage regulators are high reliability hermetically sealed thick film hybrids designed to provide a single regulated DC output from a DC voltage source. The output power rating is 14W to 30W depending on output voltage, with maximum current rating of 14A..

SBB501R5S Datasheet (450.86 KB)

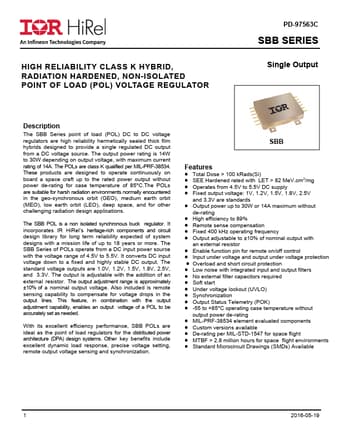

Preview of SBB501R5S PDF

Datasheet Details

Part number:

SBB501R5S

Manufacturer:

International Rectifier

File Size:

450.86 KB

Description:

Voltage regulator.
HIGH RELIABILITY CLASS K HYBRID, RADIATION HARDENED, NON-ISOLATED POINT OF LOAD (POL) VOLTAGE REGULATOR PD-97563C SBB SERIES Single Output Descripti.
