SBB-1089Z

Cascadable Active Bias InGaP HBT MMIC Amplifier

SBB-1089Z Features

* OIP3 = 43.1 dBm @ 240MHz

* P1dB = 19.6 dBm @ 500MHz

* Single Fixed 5V Supply

* Robust 1000V ESD, Class 1C

* Patented Thermal Design & Bias Circuit

* Low Thermal Resistance

* MSL 1 moisture rating dB 5 -5 -15 -25 -35 50 S11 S22 150 250 350

SBB-1089Z General Description

Sirenza Microdevices’ SBB-1089Z is a high performance InGaP HBT MMIC amplifier utilizing a Darlington configuration with an active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 5V supply, the SBB-1089Z does.

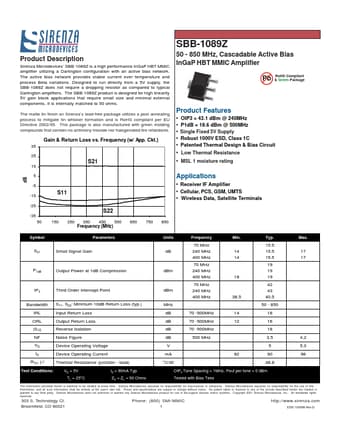

SBB-1089Z Datasheet (134.29 KB)
