BUZ71 - N-Channel Power MOSFET

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

14A, 50V.
rDS(ON) = 0.100Ω.
SOA is Power Dissipation Limited.
Nanosecond Switching Speeds.
Linear Transfer Characteristics.
High Input Impedance.
Majority Carrier Device.
Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER BUZ71.

Datasheet Details

Part number	BUZ71
Manufacturer	Intersil Corporation
File Size	48.91 KB
Description	N-Channel Power MOSFET
Datasheet	BUZ71 Datasheet

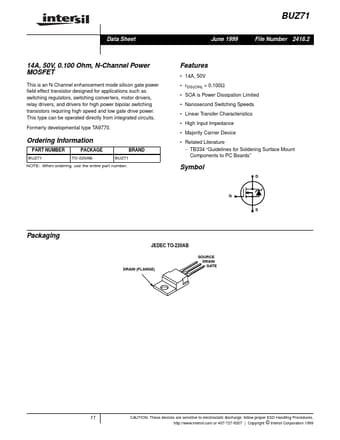

Additional preview pages of the BUZ71 datasheet.

📁 Similar Datasheet

BUZ71 - N-CHANNEL POWER MOSFET (STMicroelectronics)

BUZ71 - Power Transistor (Siemens Semiconductor Group)

BUZ71 - N-Channel Power MOSFET (Fairchild Semiconductor)

BUZ71 - N-Channel Enhancement Mode Power MOS Transistors (Comset Semiconductors)

BUZ71 - N-Channel MOSFET (INCHANGE)

BUZ71A - N-Channel MOSFET (STMicroelectronics)

BUZ71A - Power Transistor (Siemens Semiconductor Group)

BUZ71A - N-Channel Power MOSFET (Harris)

BUZ71A - N-Channel MOSFET (INCHANGE)

BUZ71AL - Power Transistor (Siemens Semiconductor Group)

Full PDF Text Transcription

Click to expand full text

BUZ71 Data Sheet June 1999 File Number 2418.2 14A, 50V, 0.100 Ohm, N-Channel Power MOSFET This is an N-Channel enhancement mode silicon gate power ﬁeld effect transistor designed for applications such as switching regulators, switching converters, motor drivers, relay drivers, and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. This type can be operated directly from integrated circuits. Formerly developmental type TA9770. Features • 14A, 50V • rDS(ON) = 0.
