G20N100D2 - HGTG20N100D2

G20N100D2 Description

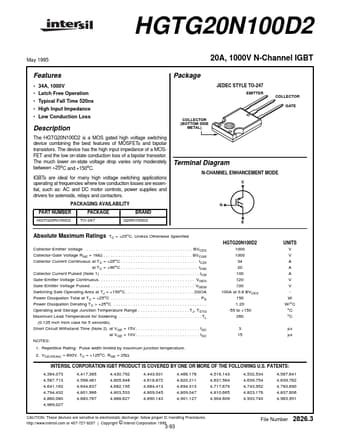

HGTG20N100D2 May 1995 20A, 1000V N-Channel IGBT Package JEDEC STYLE TO-247 EMITTER COLLECTOR GATE .
The HGTG20N100D2 is a MOS gated high voltage switching device combining the best features of MOSFETs and bipolar transistors.

G20N100D2 Features

* 34A, 1000V
* Latch Free Operation
* Typical Fall Time 520ns
* High Input Impedance

G20N100D2 Applications

* operating at frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors. PACKAGING AVAILABILITY PART NUMBER HGTG20N100D2 PACKAGE TO-247 BRAND G20N100D2 COLLECTOR (BOTTOM SIDE METAL) Terminal Diagram N-CH
