HIP2106 - 100V/1A Peak/ Low Cost/ High Frequency Half Bridge Driver

Datasheet Summary

Description

PIN NUMBER 1 2 3 4 5 6 7 8 SYMBOL VDD HB HO HS HI LI VSS LO DESCRIPTION Positive Supply to lower gate drivers.

De-couple this pin to VSS (Pin 7).

Bootstrap diode connected to HB (pin 2).

Features

Drives N-Channel MOSFET Half Bridge.
Space Saving SO8 Package.
Bootstrap Supply Max Voltage to 116VDC.
On-Chip 1Ω Bootstrap Diode.
Fast Propagation Times Needed for Multi-MHz Circuits.
Drives 1000pF Load at 500kHz with Rise and Fall Times of Typically 20ns.
CMOS Input Thresholds for Improved Noise Immunity.
Independent Inputs for Non-Half Bridge Topologies.
No Start-Up Problems.
Outputs Unaffected by Suppl.

Intersil Corporation

📥 Download Datasheet

Datasheet Details

Part number	HIP2106
Manufacturer	Intersil Corporation
File Size	66.45 KB
Description	100V/1A Peak/ Low Cost/ High Frequency Half Bridge Driver
Datasheet	HIP2106 Datasheet

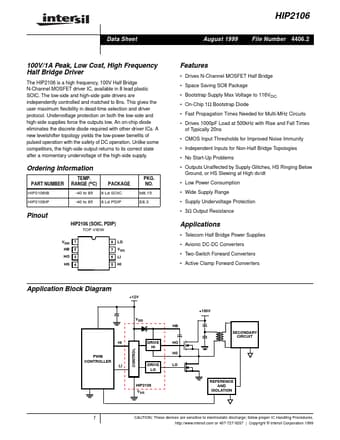

Additional preview pages of the HIP2106 datasheet.

📁 Similar Datasheet

HIP2106A - Low Voltage Driver (Renesas)
HIP2100 - High Frequency Half Bridge Driver (Renesas)
HIP2101 - High Frequency Half Bridge Driver (Renesas)
HIP2103 - Half Bridge Driver (Renesas)
HIP2104 - Half Bridge Driver (Renesas)
HIP2105 - Low Voltage Driver (Renesas)
HIP2120 - High Frequency Half-Bridge Driver (Renesas)
HIP2121 - High Frequency Half-Bridge Driver (Renesas)
HIP2122 - High Frequency Half-Bridge Driver (Renesas)
HIP2123 - High Frequency Half-Bridge Driver (Renesas)

Other Datasheets by Intersil Corporation

HIP0063 - Hex Low Side MOSFET Driver with Serial or Parallel Interface and Diagnostic Fault Control
HIP1030 - 1A High Side Driver with Overload Protection
HIP1031 - Half Amp High Side Driver with Overload Protection
HIP1090 - Protected High Side Power Switch with Transient Suppression
HIP4011 - Three Phase Brushless DC Motor Controller
HIP4081 - 80V/2.5A Peak/ High Frequency Full Bridge FET Driver
HIP5010 - 7V/ 17A SynchroFET Complementary Drive Synchronous Half-Bridge
HIP5011 - 7V/ 17A SynchroFET Complementary Drive Synchronous Half-Bridge

Full PDF Text Transcription

Click to expand full text

HIP2106 Data Sheet August 1999 File Number 4406.2 100V/1A Peak, Low Cost, High Frequency Half Bridge Driver The HIP2106 is a high frequency, 100V Half Bridge N-Channel MOSFET driver IC, available in 8 lead plastic SOIC. The low-side and high-side gate drivers are independently controlled and matched to 8ns. This gives the user maximum flexibility in dead-time selection and driver protocol. Undervoltage protection on both the low-side and high-side supplies force the outputs low. An on-chip diode eliminates the discrete diode required with other driver ICs. A new levelshifter topology yields the low-power benefits of pulsed operation with the safety of DC operation.
