HIP2100 - High Frequency Half Bridge Driver

HIP2100 Description

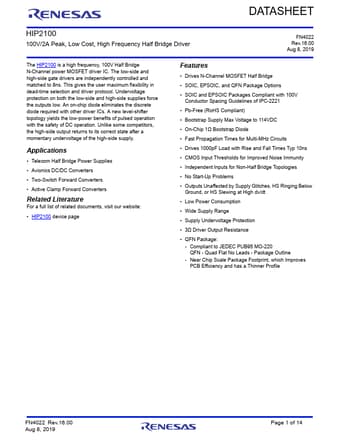

DATASHEET HIP2100 100V/2A Peak, Low Cost, High Frequency Half Bridge Driver FN4022 Rev.16.00 Aug 8, 2019 The HIP2100 is a high frequency, 100V Half.
SYMBOL VDD HB HO HS HI LI VSS LO EPAD DESCRIPTION Positive Supply to lower gate drivers.

HIP2100 Features

* Drives N-Channel MOSFET Half Bridge
* SOIC, EPSOIC, and QFN Package Options
* SOIC and EPSOIC Packages Compliant with 100V Conductor Spacing Guidelines of IPC-2221
* Pb-Free (RoHS Compliant)
* Bootstrap Supply Max Voltage to 114VDC
* On-Chip 1Ω Boots

HIP2100 Applications

* Telecom Half Bridge Power Supplies
* Avionics DC/DC Converters
* Two-Switch Forward Converters
* Active Clamp Forward Converters Related Literature For a full list of related documents, visit our website:
