IRF840 - 8A/ 500V/ 0.850 Ohm/ N-Channel Power MOSFET

Features

  • 8A, 500V.
  • rDS(ON) = 0.850Ω.
  • Single Pulse Avalanche Energy Rated.
  • SOA is Power Dissipation Limited.
  • Nanosecond Switching Speeds.
  • Linear Transfer Characteristics.
  • High Input Impedance.
  • Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER IRF840 NOTE:.

📥 Download Datasheet

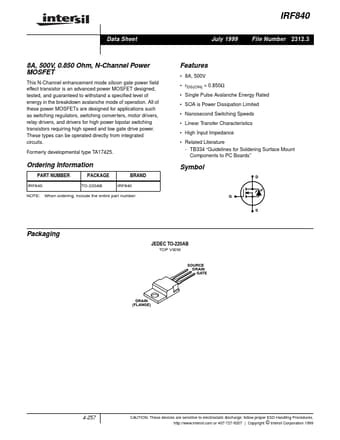

Datasheet preview – IRF840
