HGTG27N60C3DR - N-Channel IGBT

Datasheet Summary

Features

  • 54A, 600V, TC = 25oC.
  • 600V Switching SOA Capability.
  • Typical Fall Time at TJ = 150oC.
  • 200ns.
  • Short Circuit Rating at TJ = 150oC.
  • 10µs.
  • Low Conduction Loss Package JEDEC STYLE TO-247 E Ordering Information PART NUMBER HGTG27N60C3DR.

📥 Download Datasheet

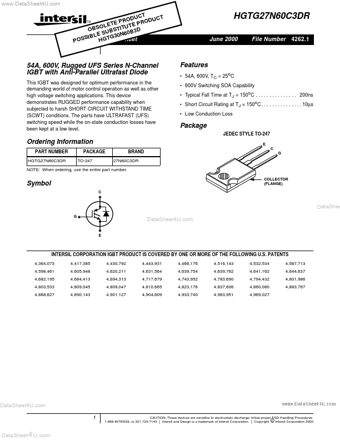

Datasheet preview – HGTG27N60C3DR

Datasheet Details

Part number HGTG27N60C3DR
Manufacturer Intersil
File Size 294.96 KB
Description N-Channel IGBT
Datasheet download datasheet HGTG27N60C3DR Datasheet
Additional preview pages of the HGTG27N60C3DR datasheet.

📁 Similar Datasheet

Other Datasheets by Intersil

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com CT ODU ODUCT R P PR TE OLE UTE OBS UBSTIT 0B3D E S G30N6 SIBL HGData T S Sheet O P TM HGTG27N60C3DR June 2000 File Number 4262.1 54A, 600V, Rugged UFS Series N-Channel IGBT with Anti-Parallel Ultrafast Diode [ /Title (HGT G27N6 0C3D R) /Subject (54A, 600V, Rugged UFS Series NChannel IGBT with AntiParallel Ultrafa st Diode) /Autho r () /Keywords (Intersil Corporation, semiconductor, Avalanche This IGBT was designed for optimum performance in the demanding world of motor control operation as well as other high voltage switching applications. This device demonstrates RUGGED performance capability when subjected to harsh SHORT CIRCUIT WITHSTAND TIME (SCWT) conditions.
