HGTG27N60C3R, N-Channel IGBT

www.DataSheet4U.com T UCT ROD RODUC P E P T E E OL UT OBS UBSTIT 0B3 S N E 0 6 Data TG3 Sheet SIBL HG POS TM HGTG27N60C3R June 2000 File Number 4245..

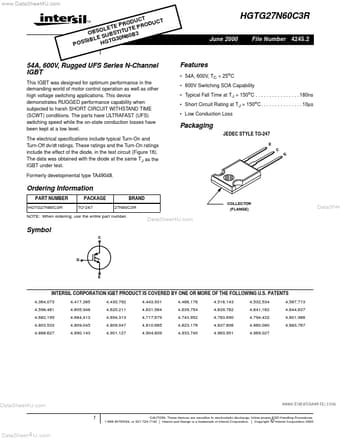

datasheet Preview Page 1 from Datasheet4u.com

HGTG27N60C3R_Intersil.pdf

HGTG27N60C3R Datasheet Preview — Preview of HGTG27N60C3R PDF

Datasheet Details

Part number:

HGTG27N60C3R

Manufacturer:

Intersil

File Size:

276.39 KB

Description:

N-Channel IGBT

Features

* 54A, 600V, TC = 25oC
* 600V Switching SOA Capability
* Typical Fall Time at TJ = 150oC
* . 180ns
* Short Circuit Rating at TJ = 150oC
* 10µs
* Low Conduction Loss Packaging JEDEC STYLE TO-247 E C G Ordering

Applications

* This device demonstrates RUGGED performance capability when subjected to harsh SHORT CIRCUIT WITHSTAND TIME (SCWT) conditions. The parts have ULTRAFAST (UFS) switching speed while the on-state conduction losses have been kept at a low level. The electrical speciﬁcations include typical Turn-On and
