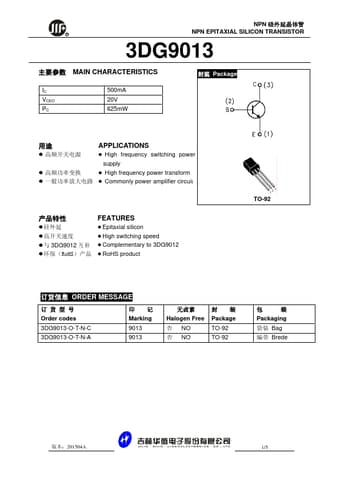

3DG9013 datasheet, transistor equivalent, JILIN SINO

3DG9013 Features and benefits

z Epitaxial silicon z High switching speed z Complementary to 3DG9012 z RoHS product TO-92 ORDER MESSAGE Order codes Marking 3DG9013-O-T-N-C 3DG9013-O-T-N-A 9013.

3DG9013 Application

z z High frequency switching power supply z z High frequency power transform z z Commonly power amplifier circu.

3DG9013 Description

of Changes 2015-4-30 201504A ：201504A 5/5 .
