KHB011N40P1 High Voltage MOSFETs

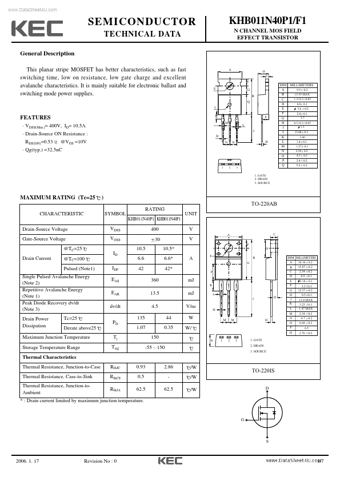

This planar stripe MOSFET has better characteristics, such as fast switching time, low on resistance, low gate charge and excellent avalanche characteristics. It is mainly suitable for electronic ballast and switching mode power supplies. KHB011N40P1/F1 N CHANNEL MOS FIELD EFFECT TRANSISTOR A O C.

KHB011N40P1 Features

* VDSS(Min.)= 400V, ID= 10.5A Drain-Source ON Resistance : RDS(ON)=0.53 @VGS =10V Qg(typ.) =32.5nC K M L J D N N P H 1 2 3 DIM MILLIMETERS _ 0.2 9.9 + A 15.95 MAX B 1.3+0.1/-0.05 C _ 0.1 D 0.8 + _ 0.2 E 3.6 + _ 0.1 F 2.8 + 3.7 G H 0.5+0.1/-0.05 1.5 I _ 0.3 13.08 + J K 1.46 _ 0.1 1.4 + L _ 0.1 1
