KHB019N20F1 High Voltage MOSFETs

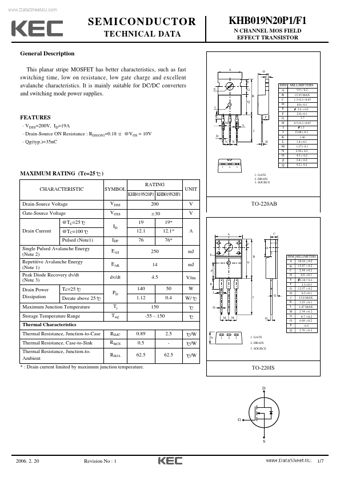

This planar stripe MOSFET has better characteristics, such as fast switching time, low on resistance, low gate charge and excellent avalanche characteristics. It is mainly suitable for DC/DC converters and switching mode power supplies. KHB019N20P1/F1 N CHANNEL MOS FIELD EFFECT TRANSISTOR A O C F.

KHB019N20F1 Features

* VDSS=200V, ID=19A Drain-Source ON Resistance : RDS(ON)=0.18 Qg(typ.)=35nC @VGS = 10V K M L J D N N P H 1 2 3 DIM MILLIMETERS _ 0.2 9.9 + A 15.95 MAX B 1.3+0.1/-0.05 C _ 0.1 D 0.8 + _ 0.2 E 3.6 + _ 0.1 F 2.8 + 3.7 G H 0.5+0.1/-0.05 1.5 I _ 0.3 J 13.08 + K 1.46 _ 0.1 1.4 + L _ 0.1 1.27+ M _ 0.2
