KHB019N20P1, KHB019N20F1 Datasheet - KEC semiconductor

KHB019N20P1, KHB019N20F1, High Voltage MOSFETs

www.DataSheet4U.com SEMICONDUCTOR TECHNICAL DATA General .
This planar stripe MOSFET has better characteristics, such as fast switching time, low on resistance, low gate charge and excellent avalanche characte.

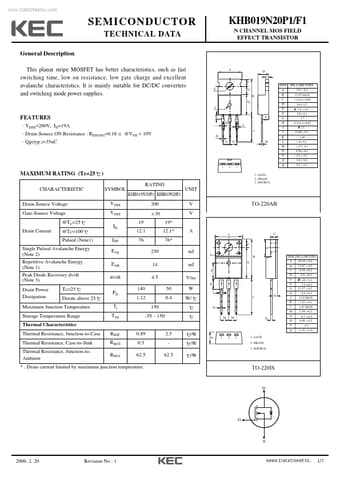

datasheet Preview Page 1 from Datasheet4u.com

KHB019N20F1_KECsemiconductor.pdf

KHB019N20P1 Datasheet Preview — This datasheet PDF includes multiple part numbers: KHB019N20P1, KHB019N20F1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KHB019N20P1, KHB019N20F1

Manufacturer:

KEC semiconductor

File Size:

103.44 KB

Description:

High Voltage MOSFETs

Note:

This datasheet PDF includes multiple part numbers: KHB019N20P1, KHB019N20F1.
Please refer to the document for exact specifications by model.

Features

* VDSS=200V, ID=19A Drain-Source ON Resistance : RDS(ON)=0.18 Qg(typ. )=35nC @VGS = 10V K M L J D N N P H 1 2 3 DIM MILLIMETERS _ 0.2 9.9 + A 15.95 MAX B 1.3+0.1/-0.05 C _ 0.1 D 0.8 + _ 0.2 E 3.6 + _ 0.1 F 2.8 + 3.7 G H 0.5+0.1/-0.05 1.5 I _ 0.3 J 13.08 + K 1.46 _ 0.1 1.4 + L _ 0.1 1.27+ M _ 0.2
