* High Power PouTd)=22W(Typ.) (Vcc=14.4V, f=lkHz, THD=10%, RL=4&, BTL) PouT(2)=19W(Typ.) (Vcc=13.2V, f=lkHz, THD=10%, RL=4&, BTL) PouT(3)=15W(Typ.) (Vcc=13.2V, f=lkHz, THD=1%, RL=4&, BTL) PouT(4)=5.8W(Typ.)/ch (VCc=13.2V, f=lkHz, THD=10%, RL=4&, DUAL).
* Low Distortion THD(l)=0.03% (Typ.) (V
KIA6281H Datasheet (319.79 KB)
KIA6281H
KEC
319.79 KB
5.8w dual audio power amplifier.
KEC
"

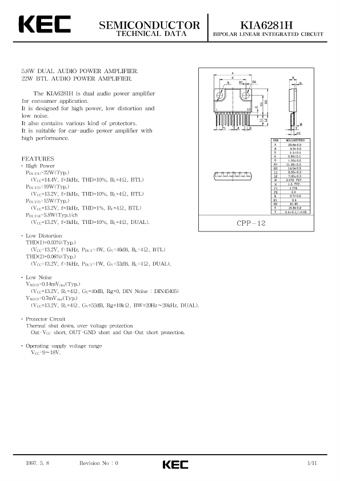

SEMICONDUCTOR TECHNICAL DATA
KIA6281H
BIPOLAR LINEAR INTEGRATED CIRCUIT
5.8W DUAL AUDIO POWER AMPLIFIER. 22W BTL AUDIO POWER AMPLIFIER.
The K.
