KIA6282K - 4.6W DUAL AUDIO POWER AMPLIFIER

Product Overview

KEC

📥 Download Datasheet

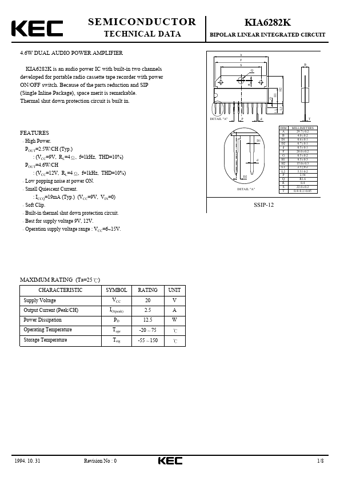

KIA6282K 4.6W DUAL AUDIO POWER AMPLIFIER by KEC - Datasheet Preview — Datasheet preview – KIA6282K

Datasheet Details

Part number	KIA6282K
Manufacturer	KEC
File Size	129.09 KB
Description	4.6W DUAL AUDIO POWER AMPLIFIER
Datasheet	KIA6282K Datasheet
Additional preview pages of the KIA6282K datasheet.

Product details

Features

High Power. POUT=2.5W/CH (Typ. ) : (VCC=9V, RL=4 , f=1kHz, THD=10%) POUT=4.6W/CH : (VCC=12V, RL=4 , f=1kHz, THD=10%) Low popping noise at power ON. Small Quiescent Current. : ICCQ=19mA (Typ. ) (VCC=9V, VIN=0) Soft Clip. Built-in thermal shut down protection circuit. Best for supply voltage 9V, 12V. Operation supply voltage range : VCC=6~15V. DETAIL "A" P d D1 d D2 DETAIL "A" T DIM.
