* High Power POUT=2.5W/CH (Typ.) : (VCC=9V, RL=4 , f=1kHz, THD=10%) POUT=4.6W/CH(Typ.) : (VCC=12V, RL=4 , f=1kHz, THD=10%) Low popping noise at power ON Small Quiescent Current : ICCQ=19mA (Typ.) (VCC=9V, VIN=0) Soft Clip Built-in thermal shut down protection circuit Best for supply voltage 9V, 12V Op
KIA6283K Datasheet (129.45 KB)
KIA6283K
KEC
129.45 KB
4.6w dual audio power amplifier.

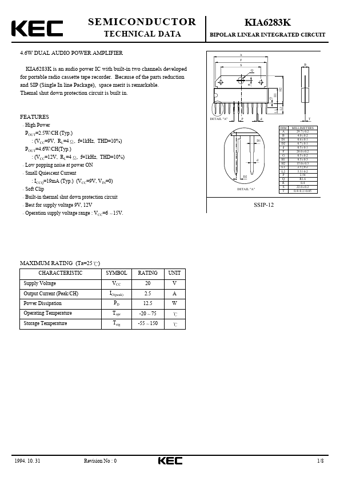

SEMICONDUCTOR
TECHNICAL DATA
KIA6283K
BIPOLAR LINEAR INTEGRATED CIRCUIT
4.6W DUAL AUDIO POWER AMPLIFIER
KIA6283K is an audio power IC with built-in .
