KDG15N120H Datasheet, Igbt, KEDA

KDG15N120H Features

• Igbt
• 1200V,15A
• VCE(sat)(typ.)=2.5V@VGE=15V,IC=15A
• High speed switching
• Higher system efficiency
• Soft current turn-off waveforms
• Sq

PDF File Details

Part number:

KDG15N120H

Manufacturer:

KEDA

File Size:

287.01kb

Download:

📄 Datasheet

Description:

Igbt. KEDA NPT IGBTs offer lower losses and higher energy efficiency for application such as IH (induction heating),UPS, general inverter a

KDG15N120H Application

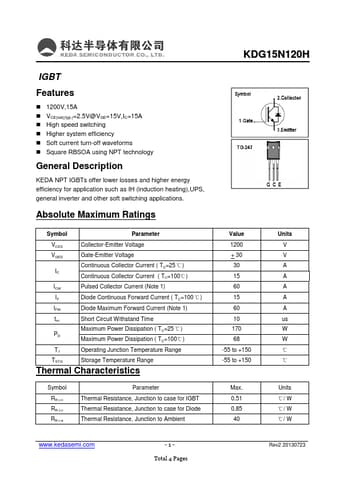

• Applications Absolute Maximum Ratings Symbol Parameter VCES Collector-Emitter Voltage VGES IC Gate-Emitter Voltage Continuous Collector Curre
