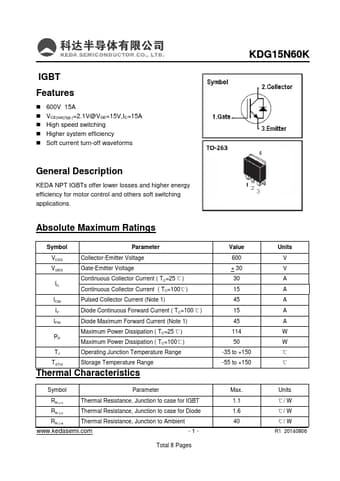

KDG15N60K Datasheet, Igbt, KEDA

KDG15N60K Features

• Igbt
• 600V 15A
• VCE(sat)(typ.)=2.1V@VGE=15V,IC=15A
• High speed switching
• Higher system efficiency
• Soft current turn-off waveforms KDG15N60K G

PDF File Details

Part number:

KDG15N60K

Manufacturer:

KEDA

File Size:

796.27kb

Download:

📄 Datasheet

Description:

Igbt. KEDA NPT IGBTs offer lower losses and higher energy efficiency for motor control and others soft switching applications. Absolute Ma

KDG15N60K Application

• Applications Absolute Maximum Ratings Symbol Parameter VCES Collector-Emitter Voltage VGES IC Gate-Emitter Voltage Continuous Collector Curr
