KDG20N120H2 Datasheet, Igbt, KEDA

KDG20N120H2 Features

• Igbt
• 1200V,20A,VCE(sat)(typ.)=2.1V@VGE=15V，20A
• High speed switching
• Higher system efficiency
• Soft current turn-off waveforms
• Square RBSOA us

PDF File Details

Part number:

KDG20N120H2

Manufacturer:

KEDA

File Size:

789.05kb

Download:

📄 Datasheet

Description:

Igbt. KEDA NPT IGBTs offer lower losses and higher energy efficiency for application such as IH (induction heating),UPS, general inverter a

KDG20N120H2 Application

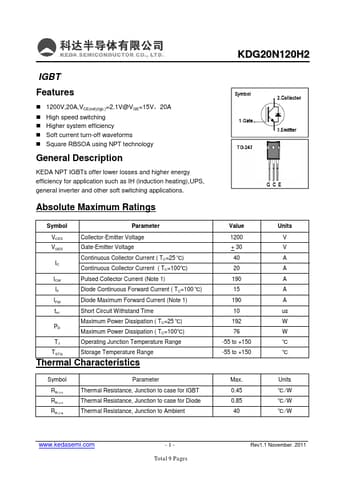

• Applications Absolute Maximum Ratings Symbol Parameter VCES Collector-Emitter Voltage VGES Gate-Emitter Voltage Continuous Collector Current
