KDG120N04AD Datasheet, Igbt, KEDA

KDG120N04AD Features

• Igbt
• 1200V,20A
• VCE(sat)(typ.)=2.7V@VGE=15V,IC=20A
• High speed switching
• Higher system efficiency
• Soft current turn-off waveforms KDG120N04AD

PDF File Details

Part number:

KDG120N04AD

Manufacturer:

KEDA

File Size:

818.24kb

Download:

📄 Datasheet

Description:

Igbt. KEDA PT IGBTs offer lower losses and higher energy efficiency for application such as IH (induction heating), and other soft switchin

KDG120N04AD Application

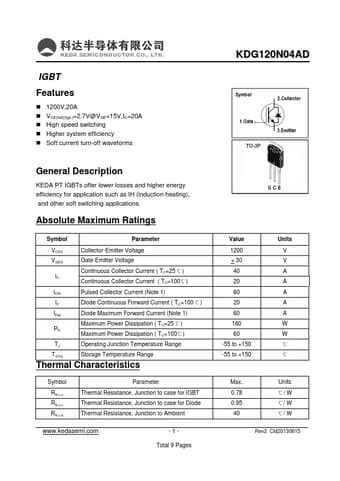

• Applications Absolute Maximum Ratings Symbol Parameter VCES Collector-Emitter Voltage VGES Gate-Emitter Voltage Continuous Collector Current
