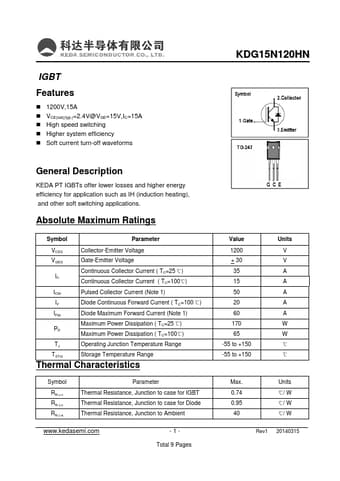

KDG15N120HN Datasheet, Igbt, KEDA

KDG15N120HN Features

• Igbt
• 1200V,15A
• VCE(sat)(typ.)=2.4V@VGE=15V,IC=15A
• High speed switching
• Higher system efficiency
• Soft current turn-off waveforms KDG15N120HN

PDF File Details

Part number:

KDG15N120HN

Manufacturer:

KEDA

File Size:

416.14kb

Download:

📄 Datasheet

Description:

Igbt. KEDA PT IGBTs offer lower losses and higher energy efficiency for application such as IH (induction heating), and other soft switchin

KDG15N120HN Application

• Applications Absolute Maximum Ratings Symbol Parameter VCES Collector-Emitter Voltage VGES Gate-Emitter Voltage Continuous Collector Current
