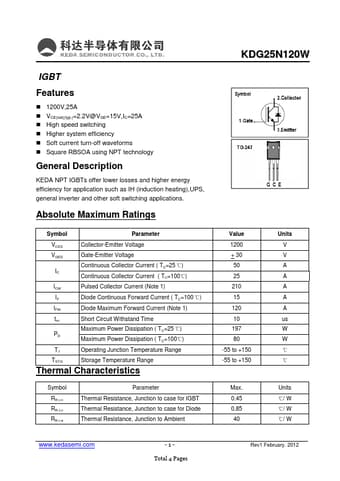

KDG25N120W Datasheet, Igbt, KEDA

KDG25N120W Features

• Igbt
• 1200V,25A
• VCE(sat)(typ.)=2.2V@VGE=15V,IC=25A
• High speed switching
• Higher system efficiency
• Soft current turn-off waveforms
• Sq

PDF File Details

Part number:

KDG25N120W

Manufacturer:

KEDA

File Size:

229.36kb

Download:

📄 Datasheet

Description:

Igbt. KEDA NPT IGBTs offer lower losses and higher energy efficiency for application such as IH (induction heating),UPS, general inverter a

KDG25N120W Application

• Applications Absolute Maximum Ratings Symbol Parameter VCES Collector-Emitter Voltage VGES IC Gate-Emitter Voltage Continuous Collector Curre
