2SA1434 - PNP Transistors

2SA1434 Description

SMD Type PNP Transistors 2SA1434 TransistIoCrs .

2SA1434 Features

* Adoption of FBET process. High DC current gain (hFE=500 to 1200). Low collector-to-emitter saturation voltage (VCE(sat) 0.5V). High VEBO (VEBO 15V). +0.12.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.10.97 -0.1 +0.11.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1

📥 Download Datasheet

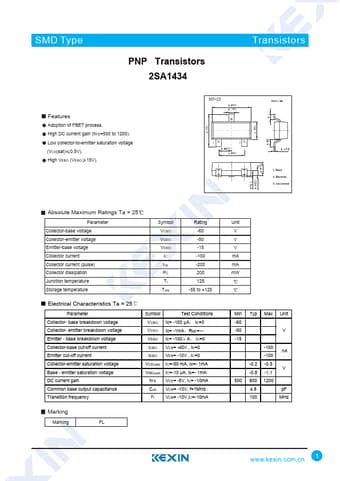

Preview of 2SA1434 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1434
Manufacturer
Kexin
File Size
686.27 KB
Datasheet
2SA1434_Kexin.pdf
Description
PNP Transistors
