2SD1819A - Silicon NPN epitaxial planar type Transistor

2SD1819A Description

SMD Type Silicon NPN Epitaxial Planar Type 2SD1819A Transistors IC .

2SD1819A Features

* High foward current transfer ratio hFE. Low collector to emitter saturation voltage VCE(sat). 1 Emitter 2 Base 3 Collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak collector current Collector current Collector power dissi

📥 Download Datasheet

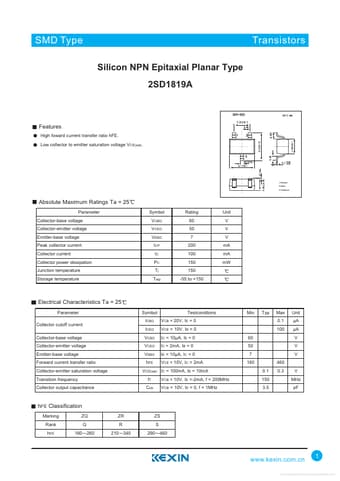

Preview of 2SD1819A PDF

Datasheet Details

Part number
2SD1819A
Manufacturer
Kexin
File Size
63.42 KB
Datasheet
2SD1819A_Kexin.pdf
Description
Silicon NPN epitaxial planar type Transistor
