Part number:
2SD2142
Manufacturer:
Kexin
File Size:
858.30 KB
Description:
Npn transistors.
| Image | Manufacturer | B2B MPN | Description | Distributor | Stock | Quantity | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
 |
ROHM Semiconductor | 2SD2142KT146 | TRANS NPN DARL 30V 0.3A SMT3 | DigiKey | 2411 | 1000 units |
$0.18
|
🛒 Buy Now |

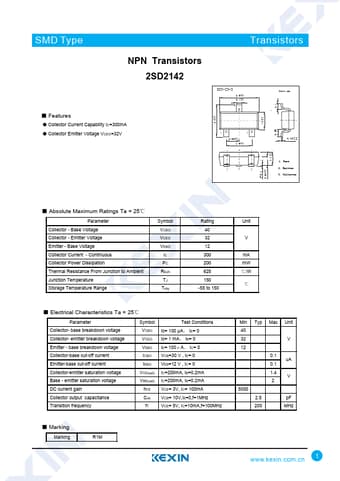

2SD2142
Kexin
858.30 KB
Npn transistors.
* Collector Current Capability IC=300mA
* Collector Emitter Voltage VCEO=32V +0.22.8 -0.1 Transistors SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.21.6 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.21.1 -0.1 1. Base 2. Emitter 3. Collector 0-0.1 +0.10.68 -0.
