DTA114EKA - Digital Transistors

Kexin

📥 Download Datasheet

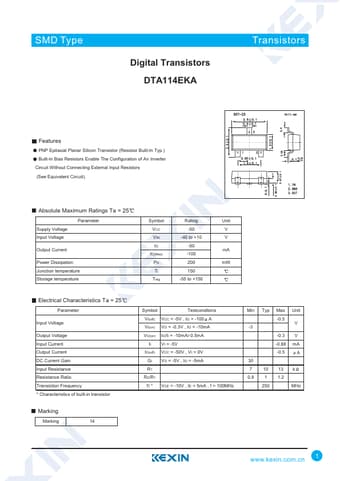

DTA114EKA Datasheet Preview — Preview of DTA114EKA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTA114EKA
Manufacturer	Kexin
File Size	172.58 KB
Description	Digital Transistors
Datasheet	DTA114EKA-Kexin.pdf

DTA114EKA Product details

Features

PNP Epitaxial Planar Silicon Transistor (Resistor Built-In Typ. ) Built-In Bias Resistors Enable The Configuration of An Inverter Circuit Without Connecting External Input Resistors (See Equivalent Circuit). Absolute Maximum Ratings Ta = 25 Supply Voltage Input Voltage Parameter Output Current Power Dissipation Junction temperature Storage temperature Symbol VCC VIN IO IC(Max) PD Tj Tstg Rating -50 -40 to +10 -50 -100 200 150 -55 to +150 Unit V V mA mW Electrical Characteristics Ta = 25.
