LMNDS04N15 - 150V N-Channel MOSFET

LMNDS04N15 Datasheet Preview — Preview of LMNDS04N15 PDF

Datasheet Details

Part number	LMNDS04N15
Manufacturer	LFC semi
File Size	338.00 KB
Description	150V N-Channel MOSFET
Datasheet	LMNDS04N15-LFCsemi.pdf

LMNDS04N15 Product details

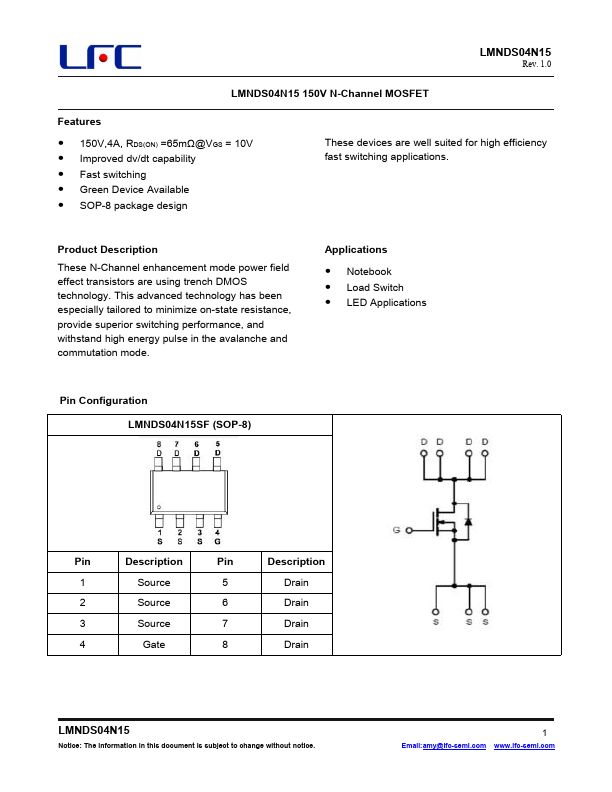

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. Notebook Load Switch LED Applications Pin Configuration LMNDS04N15SF (SOP-8) Pin Description Pin Description 1 Source 5 Drain 2 Source 6 Drain 3 Source 7 D

Features

150V,4A, RDS(ON) =65mΩ@VGS = 10V.
Improved dv/dt capability.
Fast switching.
Green Device Available.
SOP-8 package design These devices are well suited for high efficiency fast switching.
