LMNN7002KY Dual N-Channel Enhancement Mode MOSFET

LMNN7002KY Rev.1.0 LMNN7002KY Dual N-Channel Enhancement Mode MOSFET .
The LMNN7002KY is the Dual N-Channel enhancement mode field effect transistors are produced using high cell density DMOS technology.

LMNN7002KY-LFCsemi.pdf

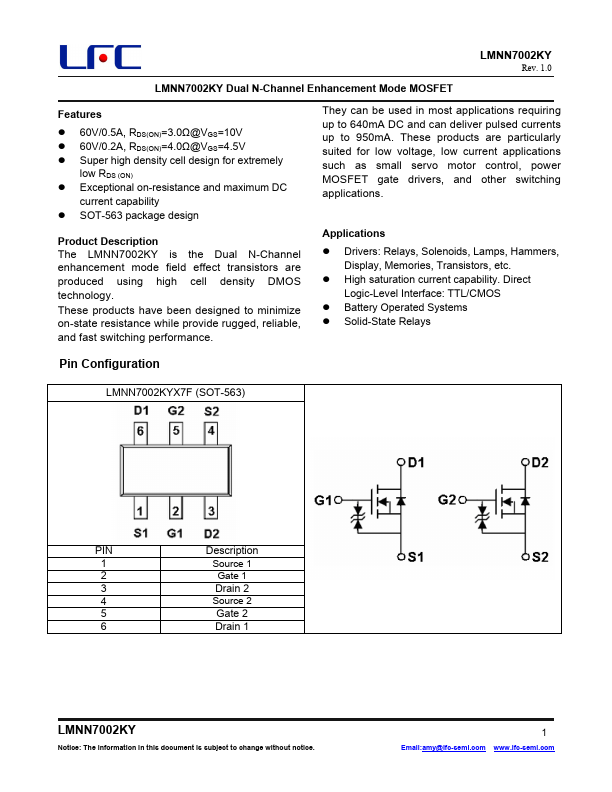

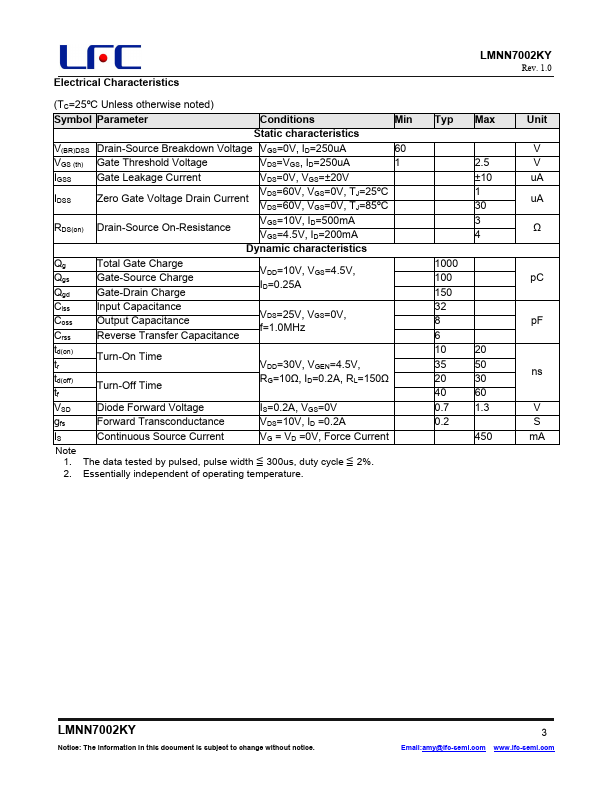

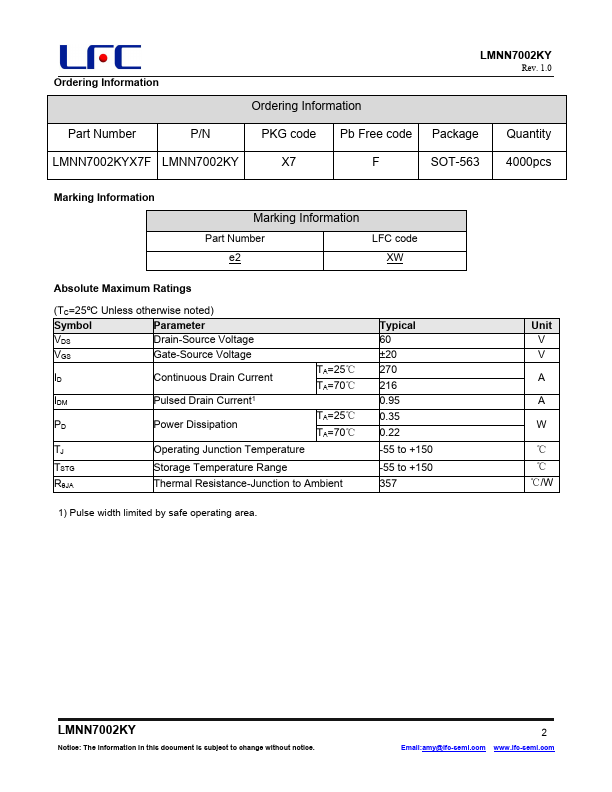

LMNN7002KY Datasheet Preview — Preview of LMNN7002KY PDF

Datasheet Details

Part number:

LMNN7002KY

Manufacturer:

LFC semi

File Size:

714.24 KB

Description:

Dual N-Channel Enhancement Mode MOSFET

Features

* 60V/0.5A, RDS(ON)=3.0Ω@VGS=10V
* 60V/0.2A, RDS(ON)=4.0Ω@VGS=4.5V
* Super high density cell design for extremely low RDS (ON)
* Exceptional on-resistance and maximum DC current capability

Applications

* requiring up to 640mA DC and can deliver pulsed currents up to 950mA. These products are particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications. Applications
* Drivers: Relays, Solenoids, Lamps,
