LP150X04-A4 - Liquid Crystal Display

The LP150X04-A4 by LG is a Liquid Crystal Display. Below is the official datasheet preview.

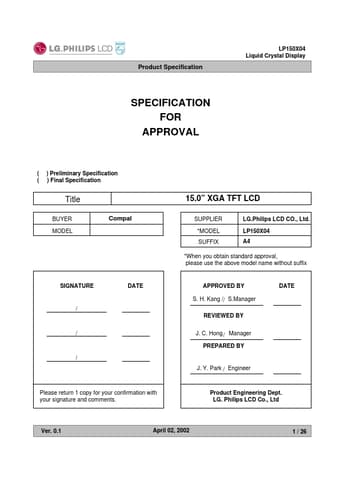

LP150X04-A4 Liquid Crystal Display by LG - Datasheet Preview — Official preview page of the **LP150X04-A4** Liquid Crystal Display datasheet (LG).

Datasheet Details

Part number	LP150X04-A4
Manufacturer	LG
File Size	298.89 KB
Description	Liquid Crystal Display
Datasheet	LP150X04-A4_LG.pdf
Additional preview pages of the LP150X04-A4 datasheet.

LP150X04-A4 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SPECIFICATIONS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 6 8 10 11 12 13 14 18 22 23 23 23 24 24 24 25 MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PAKING FORM PRECAUTIONS Ver.0.1 April 02, 2002 2 / 26 Datasheet pdf - http://www.

Features

Active screen size Outline Dimension Pixel Pitch Pixel format Color depth Luminance, white Power Consumption Weight Display operating mode Surface treatments 15.0 inches(38.1cm) diagonal 315.8(H) x 240.5(V) x 6.5(D) mm(Typ. ) 0.297 mm x 0.297mm 1024 horiz. By 768 vert. Pixels RGB stripes arrangement 6-bit, 262,144 colors 200 cd/m2(Typ. ) 4.8Watt (Typ. ) 590g(Typ. ) Transmissive mode, normally white Anti-Reflection Coating Polarizer(AGS 1) Ver. 0.1 April 02, 2002 4 / 26 Datasheet pdf - http://www.
