LP150X04-E2 - Liquid Crystal Display

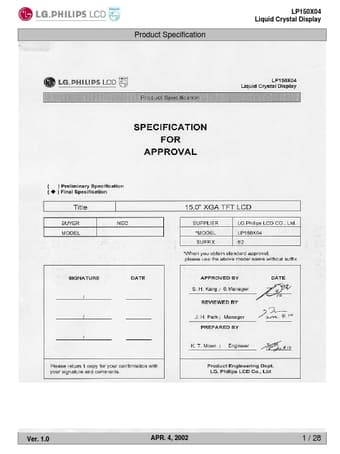

The LP150X04-E2 by LG is a Liquid Crystal Display. Below is the official datasheet preview.

LP150X04-E2 Liquid Crystal Display by LG - Datasheet Preview — Official preview page of the **LP150X04-E2** Liquid Crystal Display datasheet (LG).

Datasheet Details

Part number	LP150X04-E2
Manufacturer	LG
File Size	714.81 KB
Description	Liquid Crystal Display
Datasheet	LP150X04-E2_LG.pdf
Additional preview pages of the LP150X04-E2 datasheet.

LP150X04-E2 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ITEM Page 1 2 3 4 5 ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE www.DataSheet.net/ 6 8 10 11 12 13 14 18 22 POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PAKING FORM PRECAUTIONS 23 23 24 24 25 Ver.1.0 APR.4, 2002 3 / 28 Datasheet pdf - http://www.DataShe

Features

Active screen size Outline Dimension Pixel Pitch Pixel format Color depth Luminance, white Power Consumption Weight Display operating mode Surface treatments 15.0 inches(38.1cm) diagonal 315.8(H) x 240.5(V) x 6.5(D) mm(Typ. ) 0.297 mm x 0.297mm 1024 horiz. By 768 vert. Pixels RGB stripes arrangement 6-bit, 262,144 colors 200 cd/m2(Typ. ) 4.76Watt (typ) 590g(Typ. ) Transmissible mode, normally white Hard coating(3H) Anti-glare treatment of the front polarizer Ver. 1.0 APR. 4, 2002 5 / 28 Datashee.
