LP150X08-A3 Datasheet - LG

LP150X08-A3, LCD

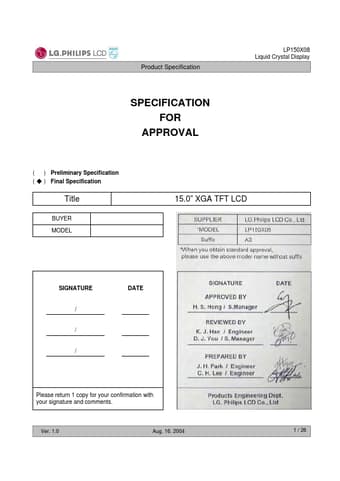

www.DataSheet.co.kr LP150X08 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( * ) Final.
ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFOR.

datasheet Preview Page 1 from Datasheet4u.com

LP150X08-A3_LG.pdf

LP150X08-A3 Datasheet Preview — Preview of LP150X08-A3 PDF

Datasheet Details

Part number:

LP150X08-A3

Manufacturer:

File Size:

506.30 KB

Description:

LCD

Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White (5P) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 1.0 15.0 inches(38.1cm) diagonal 317.3(H) x 241.5(V) x 5.7(D) mm(Typ. ) 0.297 mm x 0.297 mm 1024 horiz. By 768 vert. Pixels RGB strip

Applications

* where thin thickness, low power are critical factors and graphic display are important. In combination with the vertical arrangement of the sub-pixels, the LP150X08 characteristics provide an excellent flat display for office automation products such as Notebook PC. LVDS & Timing Control Block Row D
