LP150X08-A5 - LCD

The LP150X08-A5 by LG is a LCD. Below is the official datasheet preview.

LP150X08-A5 LCD by LG - Datasheet Preview — Official preview page of the **LP150X08-A5** LCD datasheet (LG).

Datasheet Details

Part number	LP150X08-A5
Manufacturer	LG
File Size	447.87 KB
Description	LCD
Datasheet	LP150X08-A5_LG.pdf

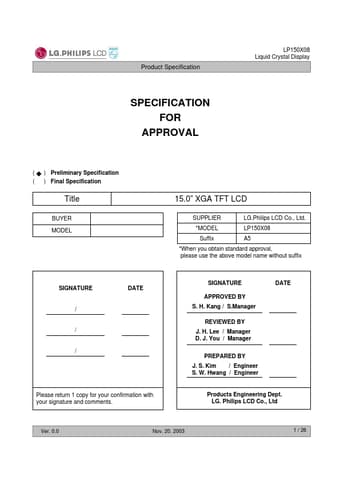

Additional preview pages of the LP150X08-A5 datasheet.

LP150X08-A5 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS FOR PROTEC

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White (5P) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 0.0 15.0 inches(38.1cm) diagonal 317.3(H) x 241.5(V) x 5.7(D) mm(Typ. ) 0.297 mm x 0.297 mm 1024 horiz. By 768 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 150 cd/m2(Typ. ) 4.66W 540 g (typ. ) Transmissive mode, normally white Hard coating(3H) Anti-glare treatment of the front polarizer Nov. 20. 2003 4 / 26 Datasheet pdf.
