LP154W01-A1 - Liquid Crystal Display

📥 Download Datasheet

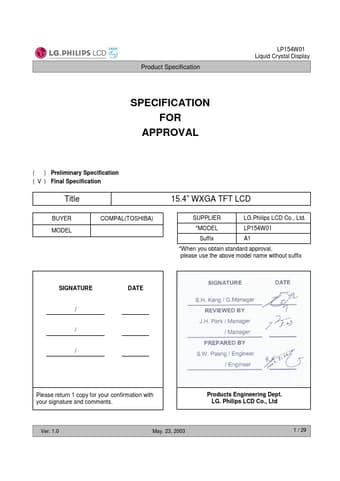

LP154W01-A1 Datasheet Preview — Preview of LP154W01-A1 PDF

Datasheet Details

Part number	LP154W01-A1
Manufacturer	LG
File Size	467.73 KB
Description	Liquid Crystal Display
Datasheet	LP154W01-A1_LG.pdf

LP154W01-A1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 7 9 9 10 11 12 16 20 COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.Enhanced Extended Display Identification Data APPENDIX.Inspection Criteria

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 15.4 inches diagonal 344.0 (H) × 222.0 (V) × 6.5(D, max) mm 0.25875 mm × 0.25875 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 185 cd/m2(Typ. ) 5 point Total 5.66 Watt(Typ. ) @ LCM circuit 1.52 Watt(Typ. ), B/L input 4.14 Watt(Typ. ) 590 g (Typ. ) Transmissive mode, normally white Hard coating(3H) Anti-glare treat.
