LP154W01-A5K1 Liquid Crystal Display

LP154W01-A5K1 Description

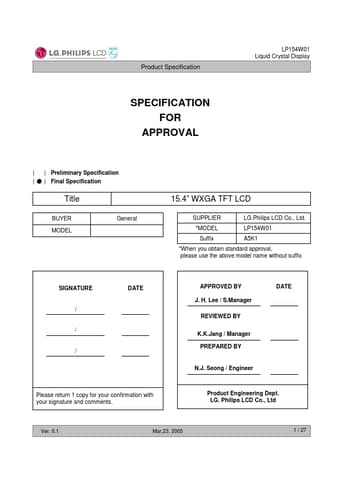

LP154W01 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( * ) Final Specification Tit.
ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFOR.

LP154W01-A5K1 Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 15.4 inches diagonal 344.0 (H) × 222.0 (V) × 6.5(D, max) mm 0.25875 mm × 0.25875 mm 1280 horiz. by 800 vert. Pixels RGB strip arrangement 6-bit

LP154W01-A5K1 Applications

* where thin thickness, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP154W01 characteristics provide an excellent flat display for office automation products such as Notebook PC. LVDS & Timing Control Block CN

📥 Download Datasheet

Preview of LP154W01-A5K1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LP154W01-A5K1
Manufacturer
LG
File Size
530.60 KB
Datasheet
LP154W01-A5K1_LG.pdf
Description
Liquid Crystal Display
