LTV-225, LTV-215 Photocoupler

📥 Download Datasheet  Datasheet Preview Page 1

Description

Photocoupler Product Data Sheet LTV-2X5-G SERIES Spec No.:DS70-2013-0042 Effective Date: 08/09/2022 Revision: H LITE-ON DCC RELEASE BNS-OD-FC001/A4 L.
1. Current transfer ratio (CTR) : 200% Min. High input-output isolation voltage. Em.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTV-225, LTV-215. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LTV-225, LTV-215
Manufacturer
LITE-ON
File Size
438.44 KB
Datasheet
LTV-215-LITEON.pdf
Description
Photocoupler
Note
This datasheet PDF includes multiple part numbers: LTV-225, LTV-215.
Please refer to the document for exact specifications by model.

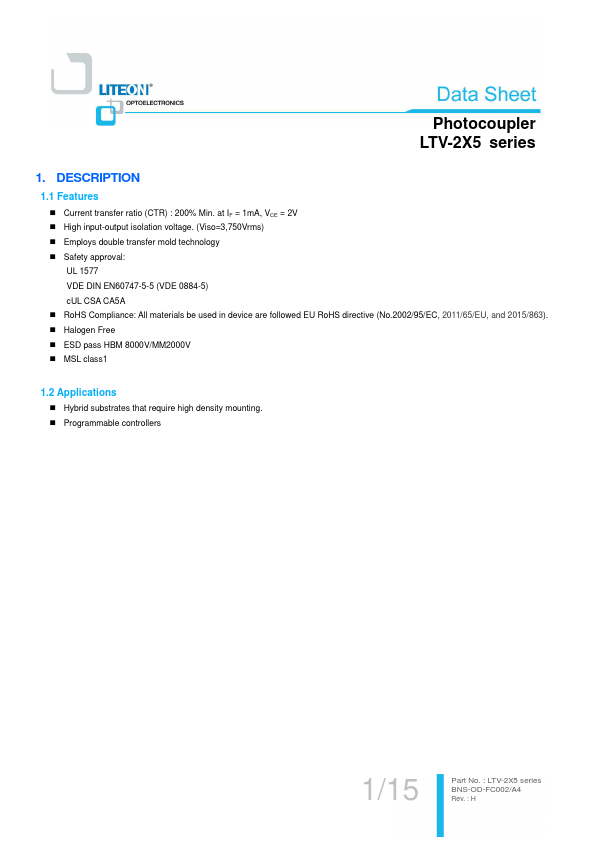

Features

* Current transfer ratio (CTR) : 200% Min. at IF = 1mA, VCE = 2V
* High input-output isolation voltage. (Viso=3,750Vrms)
* Employs double transfer mold technology
* Safety approval: UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) cUL CSA CA5A
* RoHS Compliance: All materials be used in

Applications

* Hybrid substrates that require high density mounting.

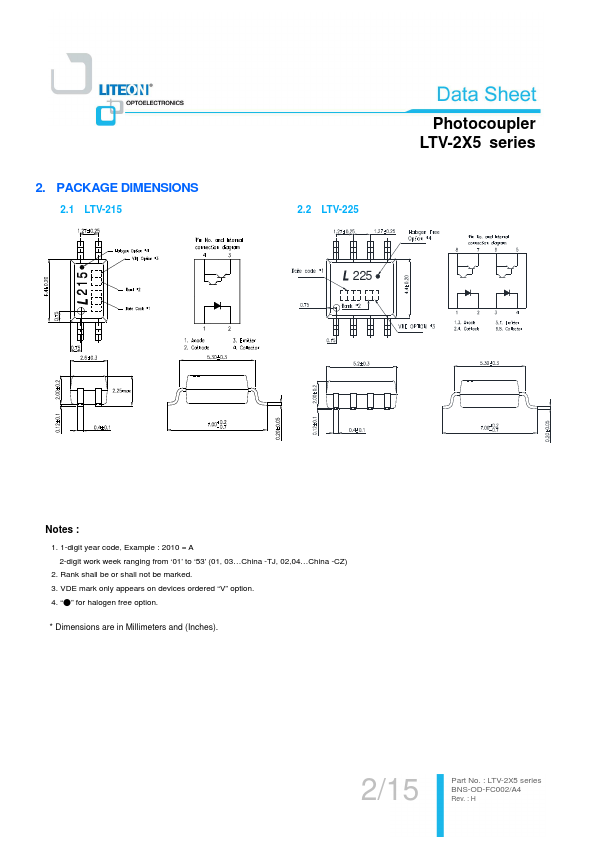

* Programmable controllers 1/15 Part No. : LTV-2X5 series BNS-OD-FC002/A4 Rev. : H 2. PACKAGE DIMENSIONS 2.1 LTV-215 Photocoupler LTV-2X5 series 2.2 LTV-225 225 Notes : 1. 1-digit year code, Example : 2010 = A 2-digit work week ran
